3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems

Name: 3000MHz 3G Antenna Surge Protector For Coaxial Cell Sites Antenna Systems
Brand: TSTLP
Price: 1 USD

Quality 3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems for sale

Model Number : TS-G3000N

Brand Name : TSTLP

Place of Origin : Guangdong,China

Certification : CE Compliance

MOQ : Negotiable

Price : Negotiable if good quantity

Packaging Details : By standard export box/carton

Delivery Time : Around 7 working days upon receipt of payment

Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead

Supply Ability : 2000 sets/month

In : 8kA

Frequency range F : 3000MHz

Return loss : ≥ 20dB

Earthing via : Outgoing connecting port

Contact Now

3000MHz / 3G antenna surge protector for coaxial / cell sites / antenna systems

TSTLP TS-3000N 3GHz (3000 MHz) antenna surge protector,designed as per IEC 61643-21 is for protecting 50Ω coaxial feeding system at LPZ0B-1 protection.

Technical Data P1

Model	TS-G3000N
Rated voltage (max. continuous voltage)	250V
Nominal current	3.5A
Lightning impulse current(10/350)	1kA
Nominal discharge current (8/20)	8kA
Max.discharge current (8/20)	20kA
Voltage protection level at Imax	≤750V
Frequency range	3000MHZ

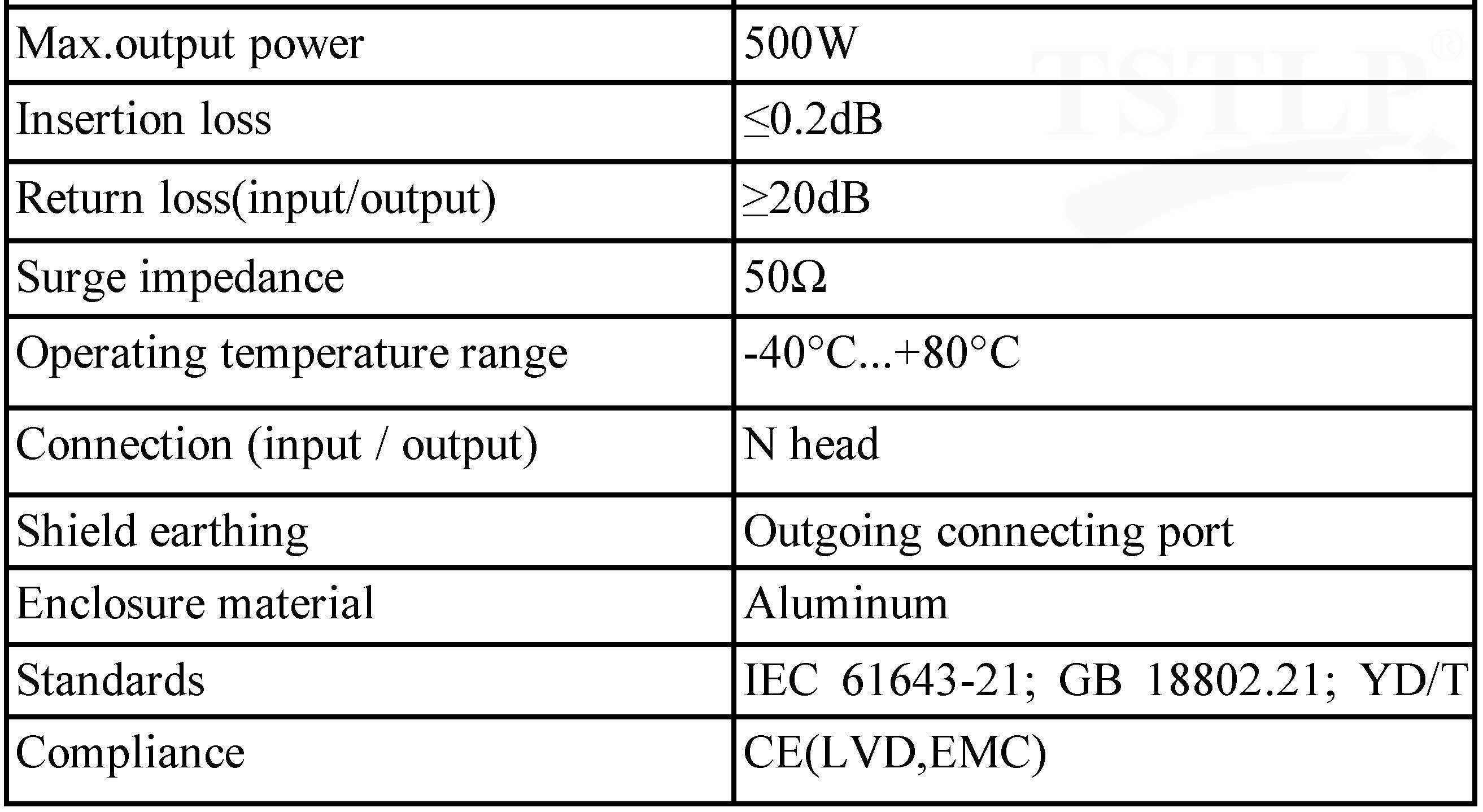

Technical Data P2

Installation Instruction

This antenna surge protector is connected in series to the protected device.
The out terminal should be connected to the protected devices.
Earthing terminal of the antenna surge protector must be connected to nearby earthing BusBar or the metal earthing enclosure of protected device.
After above, ensure the circuit is functioning.

Regularly inspect the operating status, especially after lightning. Once the communication is off, electrician should check/replace the antenna surge protector.

Installation Diagram

3000MHz / 3G Antenna Surge Protector For Coaxial / Cell Sites / Antenna Systems

PDF Catalog Download - TS-Antenna SPD.pdf
